Product code: 16101pro/16102pro Brushless Professional Remote Control High Speed Vehicle
Product configuration: 1/16 electric four-wheel drive scooter

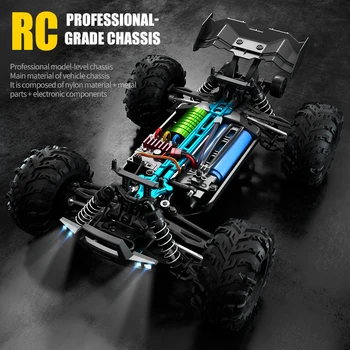

Product Material: Hardware; Electronics; plastic
Product size: 30 * 23 * 11.5 CM
Remote control size: 13 * 7.5 * 21 CM
Color box size (cm): 30.6 * 14.8 * 24.1 cm
Outer box size (cm): 61.5 * 31.5 * 50 CM
Body weight: 1000g
Remote control weight: 180g
Complete weight (g): 1700g
Packaging: English portable open-box color box
Color: Blue/Red/Orange
Brushless motor: 2840 Brushless motor (4000 KV value)
Electric regulation/reception: 35A integrated control of electric regulation/reception (anti splashing)
Steering gear: Three wire 17G digital steering gear

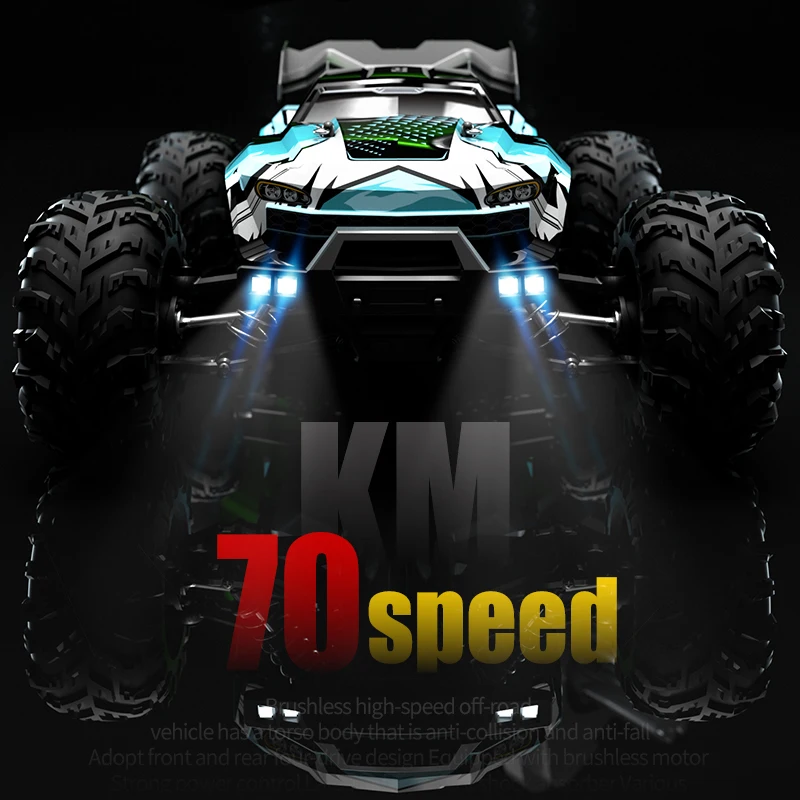

Speed: 70 km/h (extreme speed)
Wheelbase parameters: wheelbase: 185mm; Wheel base: 188mm; Wheel diameter: 85mm;
Lamp configuration: LED headlights
Differential structure: planetary gear differential
Protection function: 1. Charging; 2. Stuck; 3. High temperature; 4. Low voltage
Product accessory details: 1) Complete vehicle; 2) Remote control; 3) Chinese and English manuals; 4) Lithium batteries; 5) USB balanced charging; 6) Tail wing; 7) Head up wheel; 8) Shock absorption adjustment buckle; 9) Metal bolt: 10) Hexagonal socket; 11) Brushless guide book insert
Body battery: 7.4V 1500mAH 15C lithium-ion battery (T-plug)
Remote control battery: 3 “AA” (not included)
Control time: 15-18 minutes (continuous full speed running)
Charging time: 3-3.5 hours (USB balanced charging)
Charger: USB balanced charging
Frequency: 2.4GHz (supporting multiple vehicles competing in the same field)
Remote control distance: (meters) ≥ 120 meters

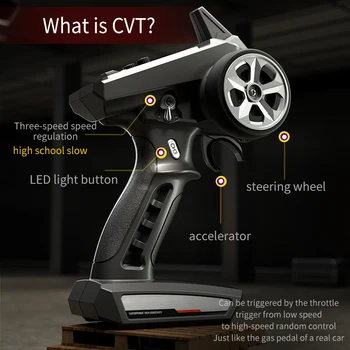

Remote control category: Full proportion synchronous control system (gun control)
Product features (selling points):
1. Designed with a simulation structure, it has a real car handling feel, achieving full proportional continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reverse, left turn, right turn;
2. Applicable sites: flat, sandy, muddy, and grassland.
3. Four wheel drive: front and rear upright spring shock absorption, dual wishbone independent suspension system;
4. 2.4G full proportion synchronous remote control system. Full proportion throttle/steering;

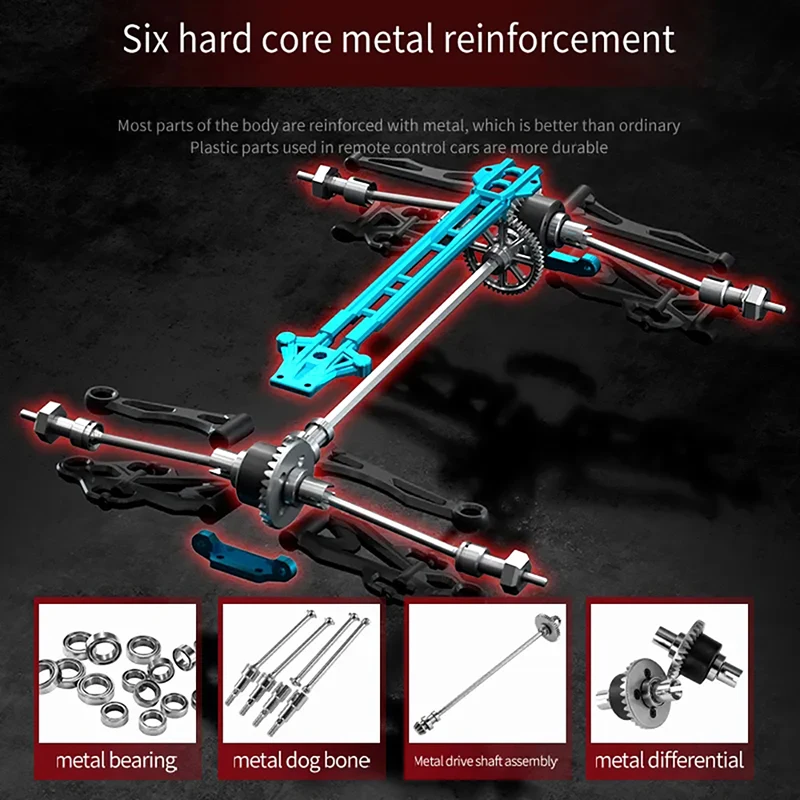

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
6. Metal CVD front transmission shaft, metal rear dog bone, metal wheel cup;
7. Three wire 17G digital servo;
8. 7.4V, 18650-1500mAh Li ion battery (T-plug), discharge rate 15C;
9. Add remote control panel function: adjust the size of the rudder;
10. The entire vehicle adopts 16 ball bearings;
11. Metal second floor, metal front and rear arm codes, metal middle transmission shaft;

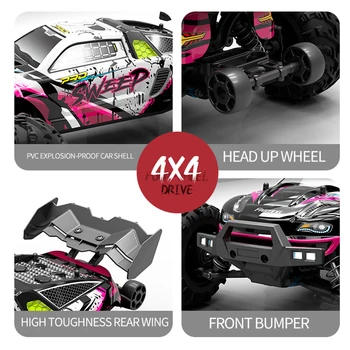

12. The car shell adopts high toughness explosion-proof PVC car shell;
13. Equipped with LED headlights; (Three speed mode: constant light, slow flashing, fast flashing);
14. Equipped with a head up wheel;
15. Simulated large foot tires with strong grip;
Precautions:
1: Charging protection: Constant current and constant voltage balanced charging, providing protection against overcharging and overcurrent of the battery.
2: Motor anti jamming protection: When overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the set value, the drive control circuit stops working and resumes operation after the temperature drops to a safe value.
4: Electric low voltage power off function, when the battery is below around 6.3-6.4V, it automatically powers off to prevent battery damage caused by over discharge.
